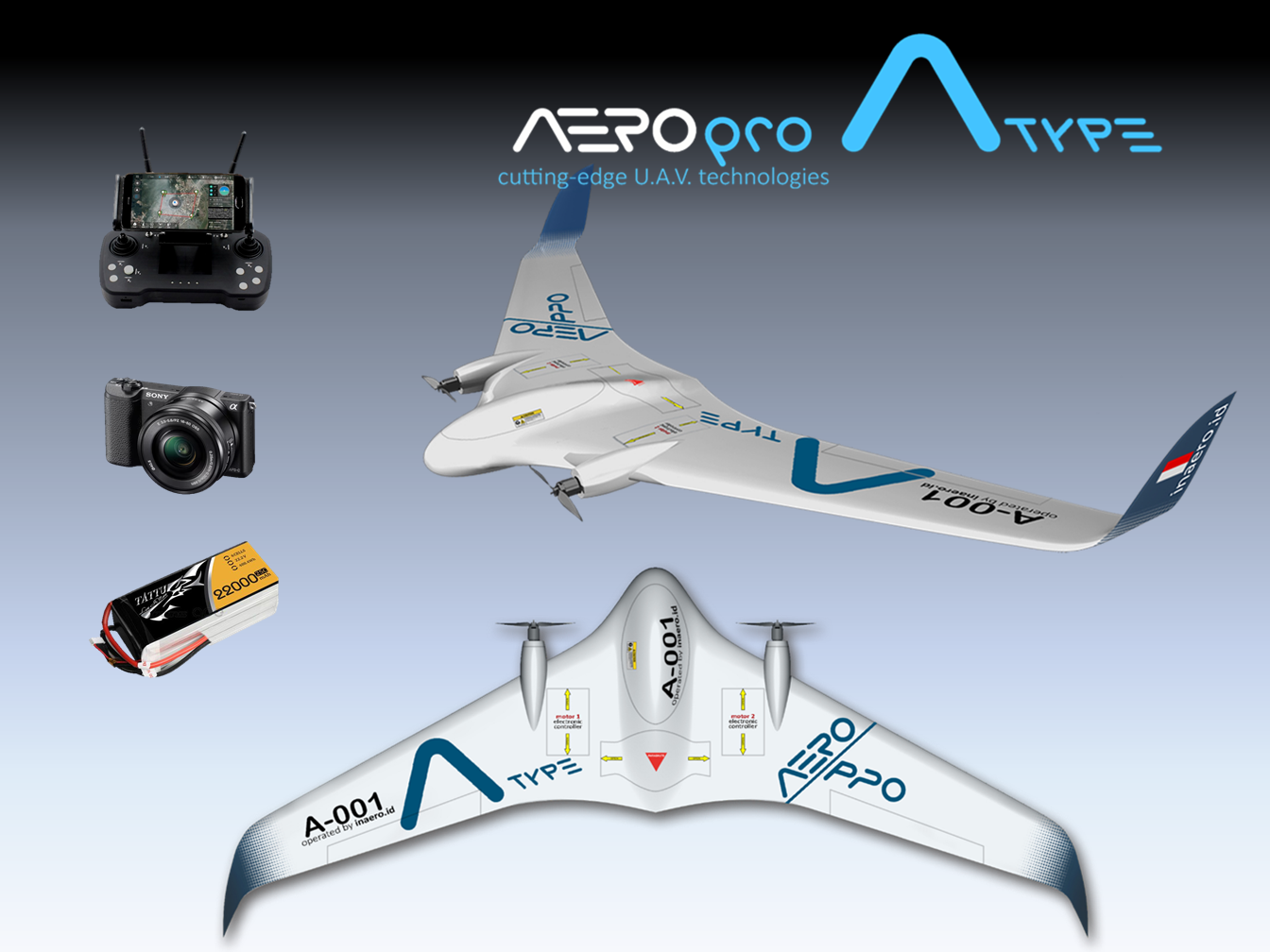

aeropro a-type

AEROpro A type is one of the products from PT. Elevasi Teknologi Aeronautika Nusantara (PETA NUSANTARA) which is engaged in industrial and mapping services of unmanned aircraft (Drone / Unmanned Aerial Vehicle) in the Special Region of Yogyakarta.

Mapping and monitoring with aerial imagery can provide more accurate, and efficient data, even for areas that are difficult to reach

UAV design principles can be adjusted by user needs. User can be more easier to use with the autopilot system, and automatic 3D flight planning. The ability to retrieve data according to specifications, and adjustments to the payload.

More efficient With AEROpro A type carbon fiber material. It is very light and accurate aerodynamic design, so that it can achieve top-level performance in speed, maximum distance and area coverage.

dETAIL

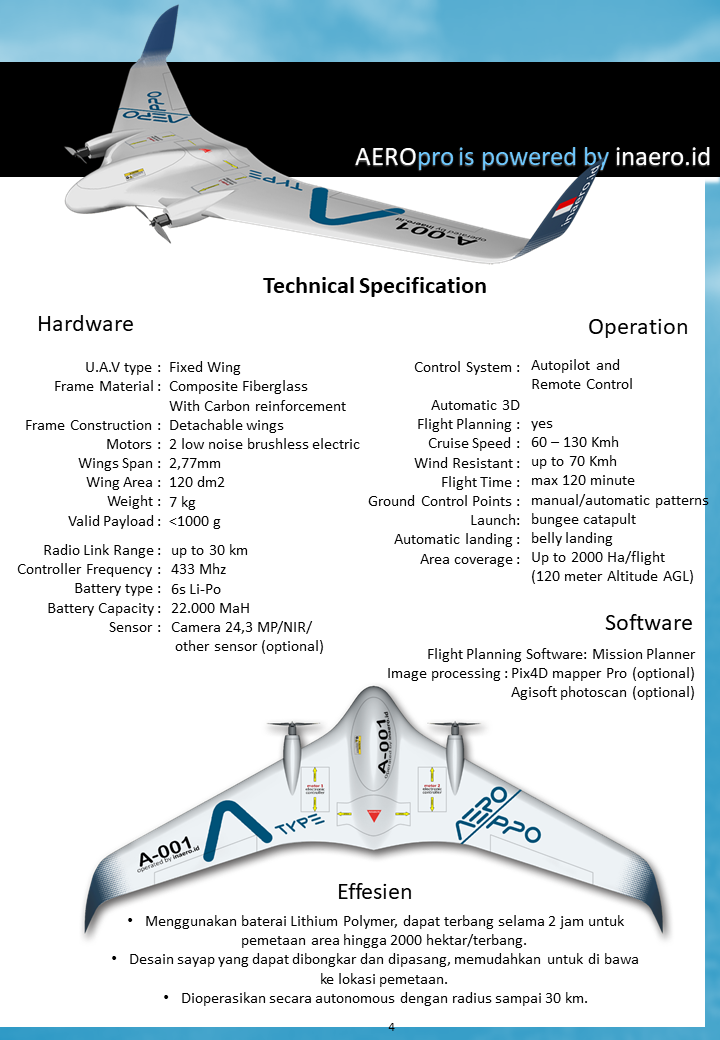

sPECIFICATION

>>

Pix4D mapper Pro (optional) Agisoft photoscan (optional)

Fixed wing

Composite fiberglass with carbon fiber reinforcement

Detachable wings

2 Low-noise brushless, electric

2.777 mm

120 dm2

7 Kg

1.000-3.000 g

Up to 60 Km

6s Li-Po

22.000 Mah

Sony A5100, NIR camera (optional)

Autopilot

60 – 130 Kmh

Up to 70 Kmh

Max 120 min

Manual/automatic flight patterns

Hand launch or catapult

Vertical landing with parachute

Max 2000 ha per flight (150 meter Altitude AGL)

<<

aeropro a-type

IMAGES OUTPUT

  • Photogrametry
  • 3D Point Cloud
  • Digital Surface Model
  • Digital Terrain Model
  • 3D textured mesh
  • Contour lines

Market Segment

oUR FUCTIONAL

Agriculture industry

INFRASTRUCTURE

MINING

STATE RESISTANCE

Prototype

m

Impact

k

Working Hours

Tea Cups
